Validating and submitting the Workflow documents

Unsubmitted Workflow items can be worked on from item list and opened in the item viewer once they are acquired successfully. Various operations can be performed on Workflow items while working with them in the item viewer such as editing fields, adding annotations, submit one or more unsubmitted items etc.



The following video shows how to validate the Workflow item before submitting it to the Workflow.

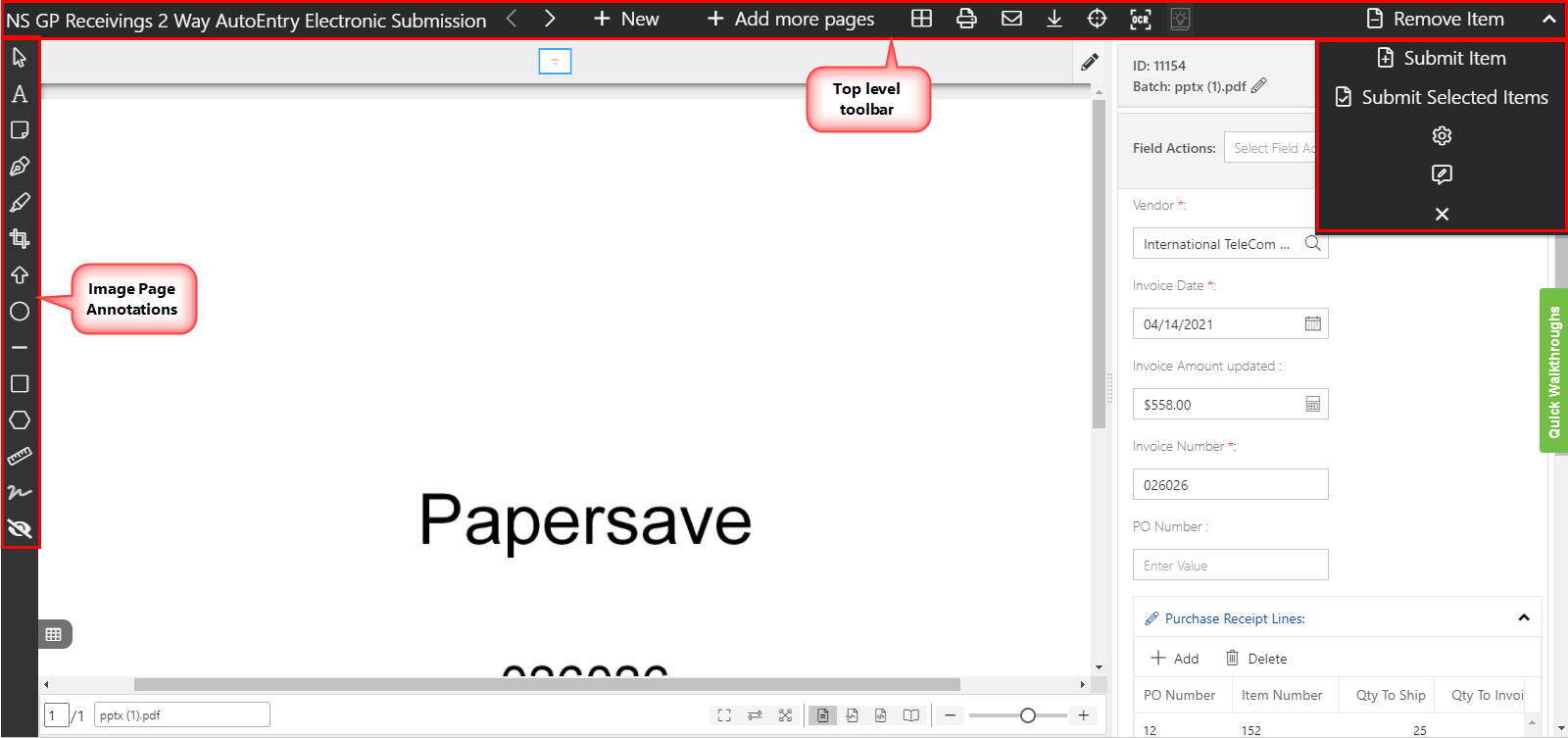

The below screen displays the various options available in the Item viewer for validating the Workflow item.





Following is the description of various options available to validate the Workflow item in the Workflow Area:



Top level Toolbar options in the Item viewer for unsubmitted items:

Following are the options in the top level toolbar of item viewer for unsubmitted items:

- Click on this option to navigate to the previous unsubmitted item. It will be disabled if there is no previous item.

- Click on this option to navigate to the next unsubmitted item. It will be disabled if there is no next item.

- Click on this option to switch to File capture options panel to acquire a new document.

- Click on this option to add more pages to the current document. clicking on this option will display the following "Add additional pages" prompt.





- This option will navigate you to Page Manipulation View for unsubmitted items in the Workflow Area where you can perform various operations such as cut, copy, paste, rotate, etc. on the unsubmitted items. Click here to know more about it.



- Click on this option to print the current document.

- Currently, this feature is not yet implemented.

- Click on this option to download the current document.

- Click on this option to process OCR on the items. Using this option will override the current profile field values.

- Click on this icon to use the learn by fingerprint or learn by key feature.

- Click on this option to discard the current item.

- Click on this option to submit the current unsubmitted item.

- Click on this option to submit the selected items from the unsubmitted item list.



Using Image page options(Annotations) for Unsubmitted items

You can add different annotations using the Image page options toolbar on the left hand corner of the screen. Click here to know more about it.



- Click on this option to define your preferences in the Settings panel in Item viewer for unsubmitted items:

The following video explains the Item Viewer Settings options for unsubmitted items:

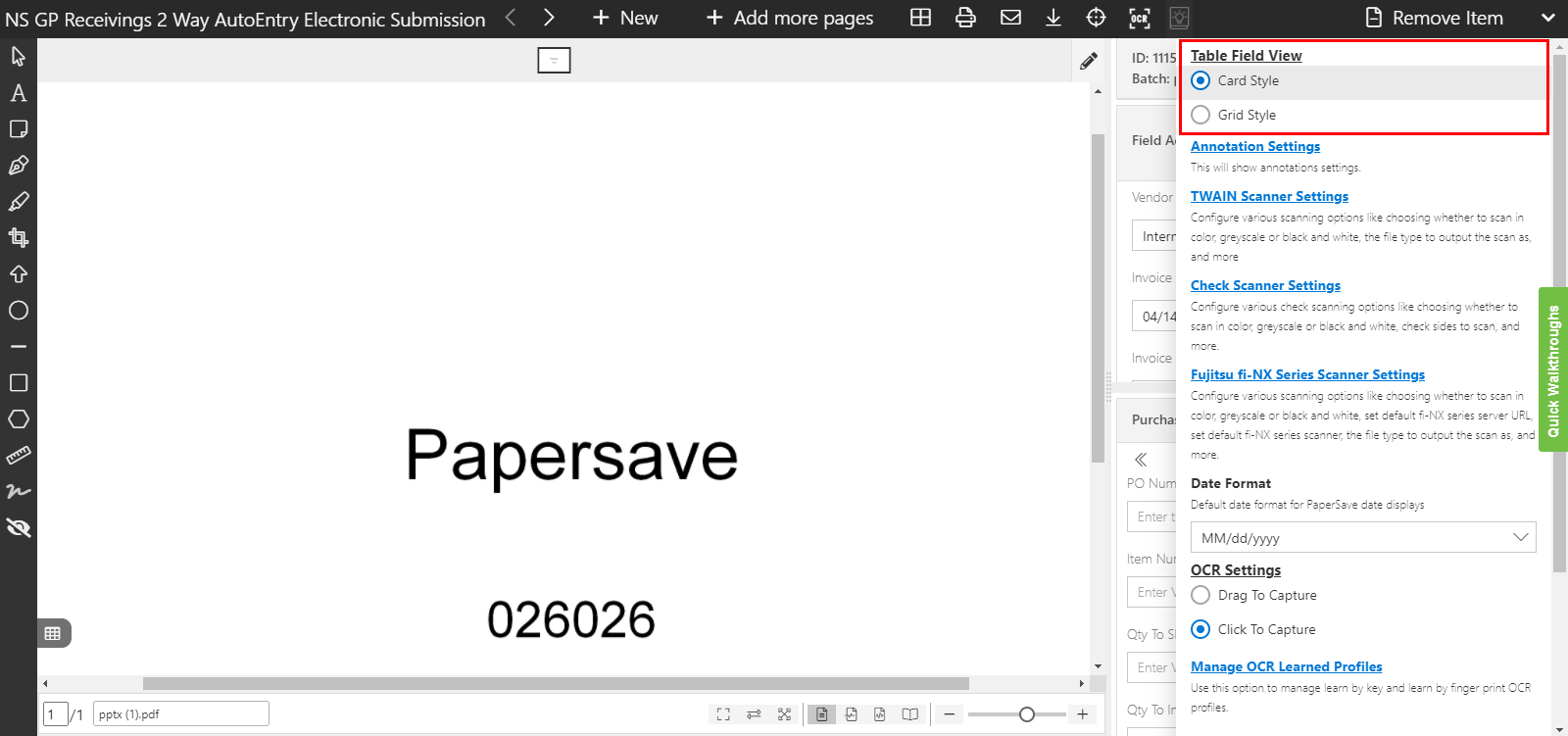

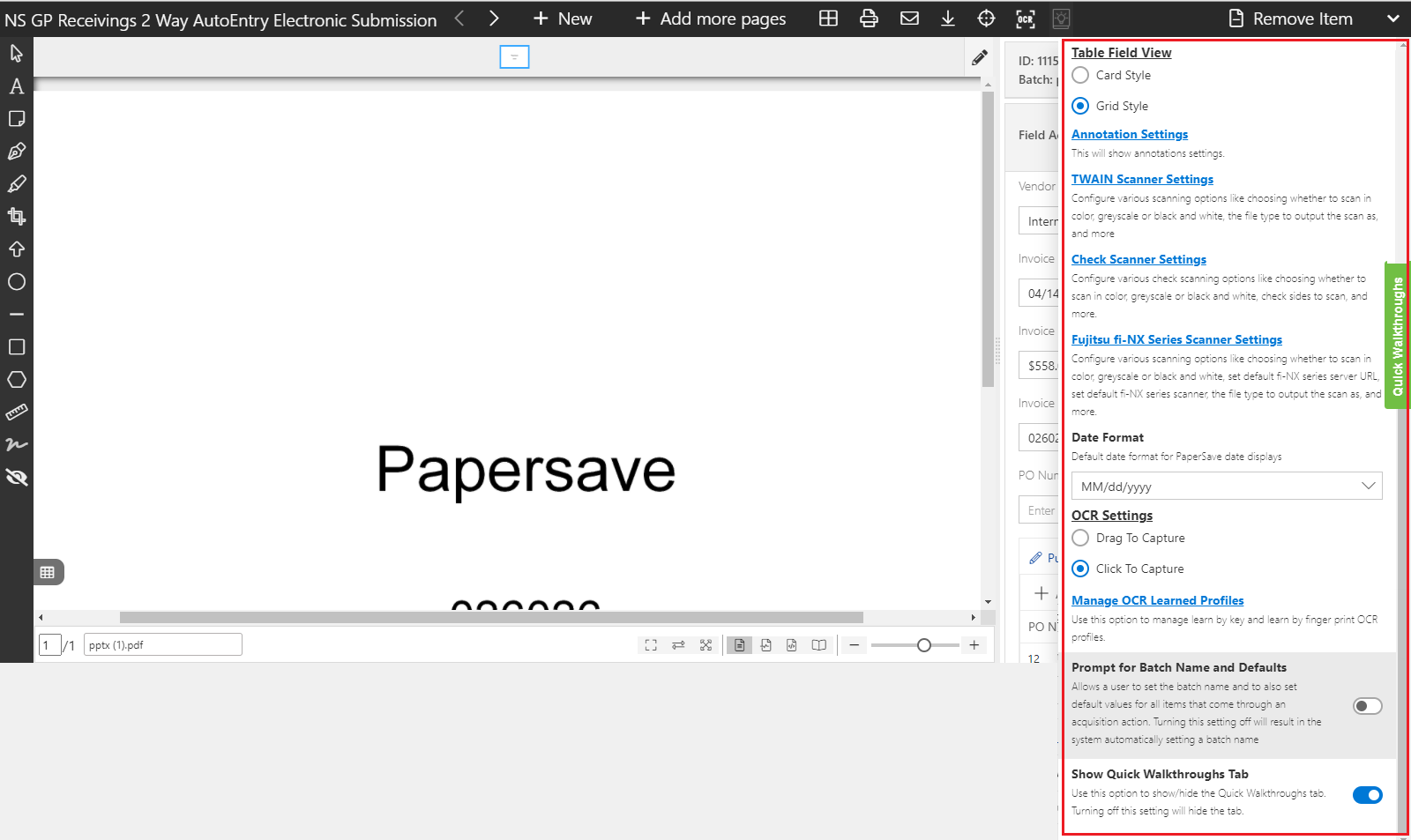

Click on icon in the top level toolbar to open Settings panel in the right corner of the screen as shown below:





Following is the brief description of various preferences in the Settings panel:

TABLE FIELD VIEW

PaperSave offers a widget with two different user interfaces (card style and grid style) for the table type fields in the document profile field panel. Card style is set as default option.

Card Style : It switches the "table type field" widget to card view.

Select the Card style option in Table field view Settings as shown in below figure:





You will see "Card Style view" for the Table type fields in the document profile field panel as shown in the following figure.





Grid Style: It switches the "table type field" widget to Grid view.

Select the Grid style option in Table field view Settings as shown in following figure:

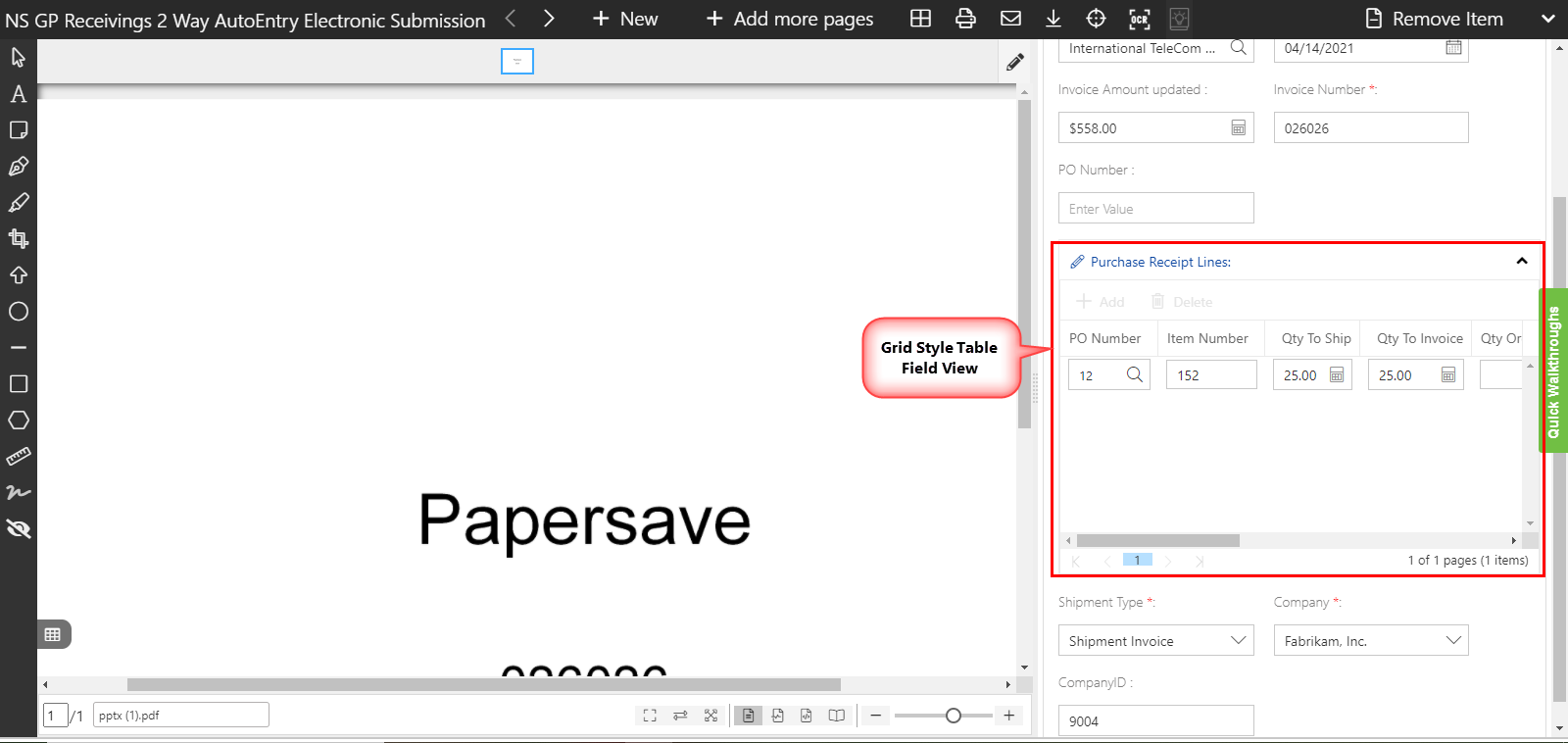

You will see "Grid Style view" for the Table type fields in the document profile field panel as shown in the following figure.

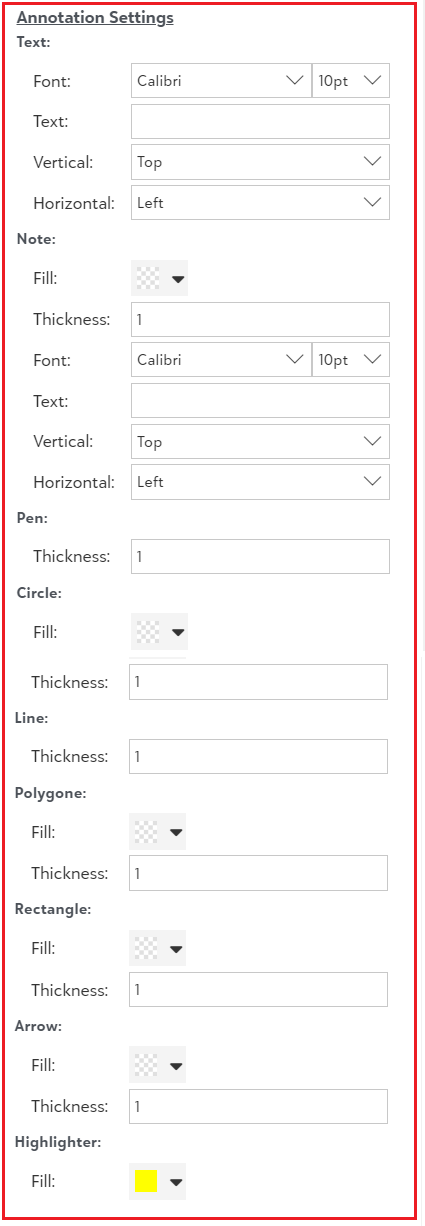

ANNOTATION SETTINGS

This Setting option enables you to adjust the following preferences for each annotation tool in the Workflow Item Viewer.





Text, Note: Select font, font size, default text, vertical and horizontal alignment.

Pen, Circle, Line, Polygon, and Arrow: Select the thickness and color.

Highlighter: Select the color.



TWAIN SCANNER SETTINGS

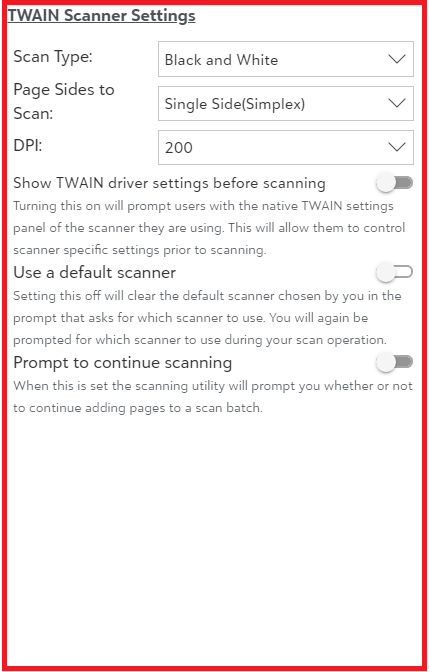

This Setting option enables you to configure the following scanner related preferences as shown below:





1) Scan Type

Black & White, Gray Scale, Color



Tip: We highly recommend you to use Black and White scan option as it uses the least amount of disk storage space and yields fastest processing.



2) Page Sides to Scan

  • Single Side
  • Both sides



Note: If your scanner supports skipping or ignoring blank page, then we recommend you setting the Page Scan options to Scan Both sides(Duplex).



3) DPI ( Dots per inch)

The smaller the DPI number, the less sharp the image will appear. However, size of the image will increase as you increase the DPI number.



Note: We recommend that you use 300 DPI.



4) Show TWAIN driver settings before scanning

Turning this on will prompt users with the native TWAIN settings panel of the scanner they are using. This will allow them to control scanner specific settings prior to scanning.



5) Use a default scanner

Setting this off will clear the default scanner chosen by you in the prompt that asks for which scanner to use. You will again be prompted for which scanner to use during your scan operation.



6) Prompt to continue scanning

When this option is set the scanning utility will prompt you whether or not to continue adding pages to a scan batch.

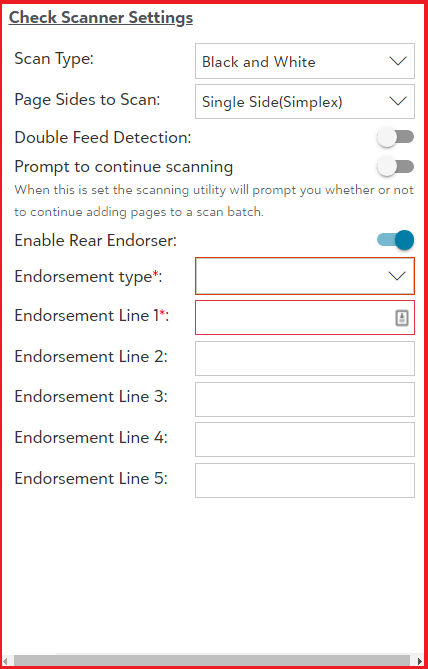

CHECK SCANNER SETTINGS

This Setting option enables you to configure the following check scanner related preferences as shown below:





1) Scan Type

Black & White, Gray Scale, Color



Tip: We highly recommend you to use Black and White scan option as it uses the least amount of disk storage space and yields fastest processing.



2) Page Sides to Scan

• Single Side (Simplex)

• Both Sides



Note: We recommend you setting the Page Scan Options to Scan Both Sides (Duplex) if your scanner supports skipping or ignoring blank page.



3) Prompt to continue scanning :

When this option is set the scanning utility will prompt you whether or not to continue adding pages to a scan batch.



4) Enable Rear Endorser :

This option allows the user to enable and disable the rear endorsement for the checks. Endorsement can be virtual or physical depending on your check scanner.



5) Endorsement Type:

This option will define if the rear endorsement is printed on the physical check or on the image of the check in the gift item document. You can select one or both options.



Endorsement Line 1 to Endorsement line 5:

This sets the lines you want printing (virtually or physically) on the back of checks. This requires on the Enable Rear Endorser option to be turned on.



Note: Your check scanner must support this feature for using Rear endorser options for using Rear endorser options,

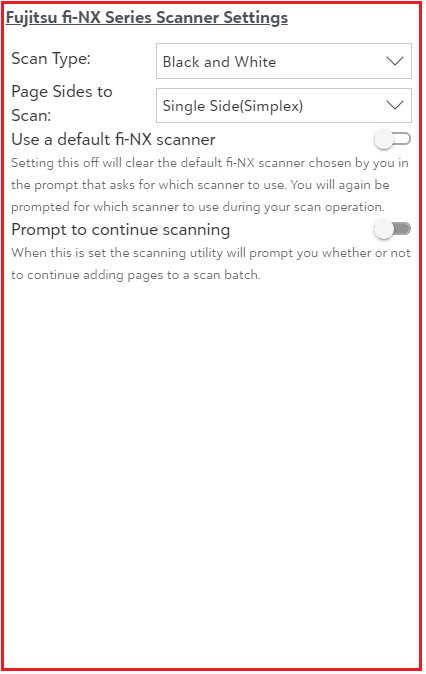

FUJITSU fi- NX SERIES SCANNER SETTINGS

This Setting option enables you to configure the following Fujitsu fi-NX scanner related preferences as shown below:





1) Scan Type

Black & White, Gray Scale, Color



Tip: We highly recommend you to use Black and White scan option as it uses the least amount of disk storage space and yields fastest processing.



2) Page Sides to Scan

  • Single Side
  • Both sides



Note: If your scanner supports skipping or ignoring blank page, then we recommend you setting the page scan options to scan both sides (Duplex).



3) Output Type:

This controls the format of documents that go through the Fujitsu NX series scanner based acquisition option.



4) Use a default fi-NX scanner

Setting this off will clear the default fi-NX scanner chosen by you in the prompt that asks for which scanner to use. You will again be prompted for which scanner to use during your scan operation.



5) Prompt to continue scanning :

When this option is set the scanning utility will prompt you whether or not to continue adding pages to a scan batch.



DATE FORMAT

This option enables the user to change the date format. By default it is MM/dd/yyyy.

User can set their preferences to any of the following date format options.

  • MM-dd-yyyy
  • MM/dd/yyyy
  • dd-MM-yyyy
  • dd/MM/yyyy
  • yyyy-MM-dd



Once any of the above date format is selected, it should save/update the new date format for that user on exiting of the Settings menu.



OCR SETTINGS:

This Setting option enables you to configure OCR related preferences in the Workflow item viewer as follows. Set the preference to use drag or click action for correcting the Profile fields upon OCR processing.

1) Drag to Capture: Choose this option to capture the value from the document and drag that selected value to desired document profile field.

2) Click to Capture: Choose this option to capture the value from the document and click on the desired document profile field to auto-fill the captured value.



Note: Click/Drag to Capture options will be only applicable for OCR related documents.



MANAGE OCR LEARNED PROFILES

You can use this option to manage learn by key and learn by finger print OCR profiles.



PROMPTS FOR BATCH NAME AND DEFAULTS

Enabling this option turns on the prompt for batch and field defaults. The prompt is on by default but can be turned off by selecting the checkbox labeled "Don't ask me again" in the “Set Batch and Field Defaults” dialog. Turning this setting off will result in the system automatically setting a batch name. Similarly, Setting the option ON restores the prompt.



SHOW QUICK WALKTHROUGH TAB

Use the toggle button to show/hide the Quick walkthroughs on the screen.



Review and edit Profile fields

The area presents the field panel in right corner of the item viewer with various fields related to document type or Workflows. The field data is either automatically captured via Optical Character Recognition (OCR) technology, looked up against values in Dynamics GP's database (using SQL) or entered in manually. Fields that are captured via OCR will show a percentage value in parentheses next to the field label. This percentage represents the confidence that the OCR engine has in the value it captured. The more exact the match , the higher the confidence score.



It is recommended that you double check and validate all values captured by OCR but you should especially focus to validate all the values with a low confidence score. If the auto field values are incorrect or inaccurate, then you can edit such profile fields manually or use the drag to capture tool to automatically select text from the document, drag, and then drop it on the field. See the drag to capture section for more details on how this works.



The fields will vary across different Workflows and document type defined in the Configuration Area. For Example - A date field value will have a date picker widget to enter the date value. It can be modified manually such as in cases where the OCR may not have captured the right date. The area will display a confidence score next to the date field’s label indicating how accurate it believes the OCR engine was in capturing the date off the document.



Similarly, based on the Workflow fields properties, some fields such as vendor, PO Number, etc can be looked up against the Dynamics GP's database using different properties. For amount related fields such as Invoice amount, you can optionally use the calculator widget to perform desired calculations and determine the amount. The value of this field is defaulted to the amount captured by OCR in case if the document went through OCR processing successfully.



You can default the view as Card style view or Grid style view in Table Type fields such as Line items, distribution, Purchase Receipt Line, etc. This preference can be defined in the settings panel.





Note: The fields in the Workflow item field panel may vary based on the user's access rights across different Workflows.



Tip: The new AI-powered add-on feature suggests values and tracks user selections. When a suggestion is added to a table-type profile field, a tick mark appears next to it in the suggestion box. This tick mark remains visible upon revisiting, helping you easily identify previously selected suggestions.

For more information or configuration guidance, refer to this topic or contact the PairSoft team.



Correcting fields using Drag to Capture tool

The Drag to Capture tool allows you to hover over a word, grab onto it, and drag it over a field and let go to drop that word into the field. This option is available on the top-level toolbar of unsubmitted item viewer. You can capture (which draws a highlighted area around the selected text) multiple words, grab onto them, and drag them over a field to drop all those words into the field. This is a very useful tool to validate and correct values that were not captured correctly by OCR or to help make manual entry more efficient.



Note: This option is only applicable for document or item that went through the OCR process successfully.



Submit documents to PaperSave Workflow



Once the unsubmitted workflow item get validated, you can submit that item to the Workflow:

The following video covers how you can submit an item to the Workflow.



You can submit items to Workflow in the Workflow Area upon validating the profile fields using any of the following options:

  1. Submit current item in the item viewer using Submit item.
  2. Submit one or more Workflow item from the unsubmitted item list using Submit Selected items.

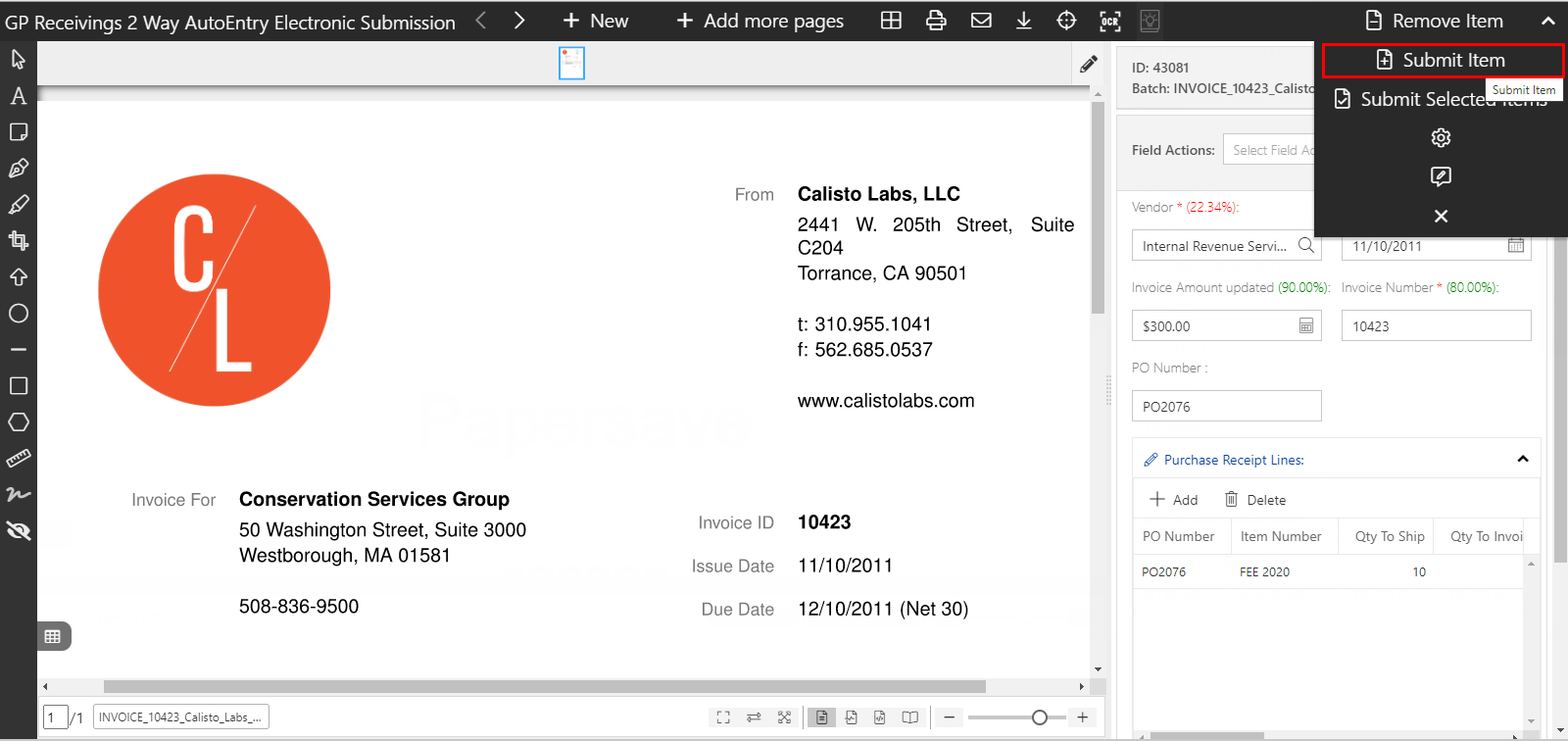

1) Submit item:

Once you are done validating the profile fields and you have entered the required fields, then click on Submit Item in the Top level toolbar (as shown in the below screen):





  • It shows a success notification in the top right corner of the screen upon successful item submission as shown below:





  • If you try to submit a single item without entering the required fields, you are encountered with the following error:





2) Submit Selected Items :

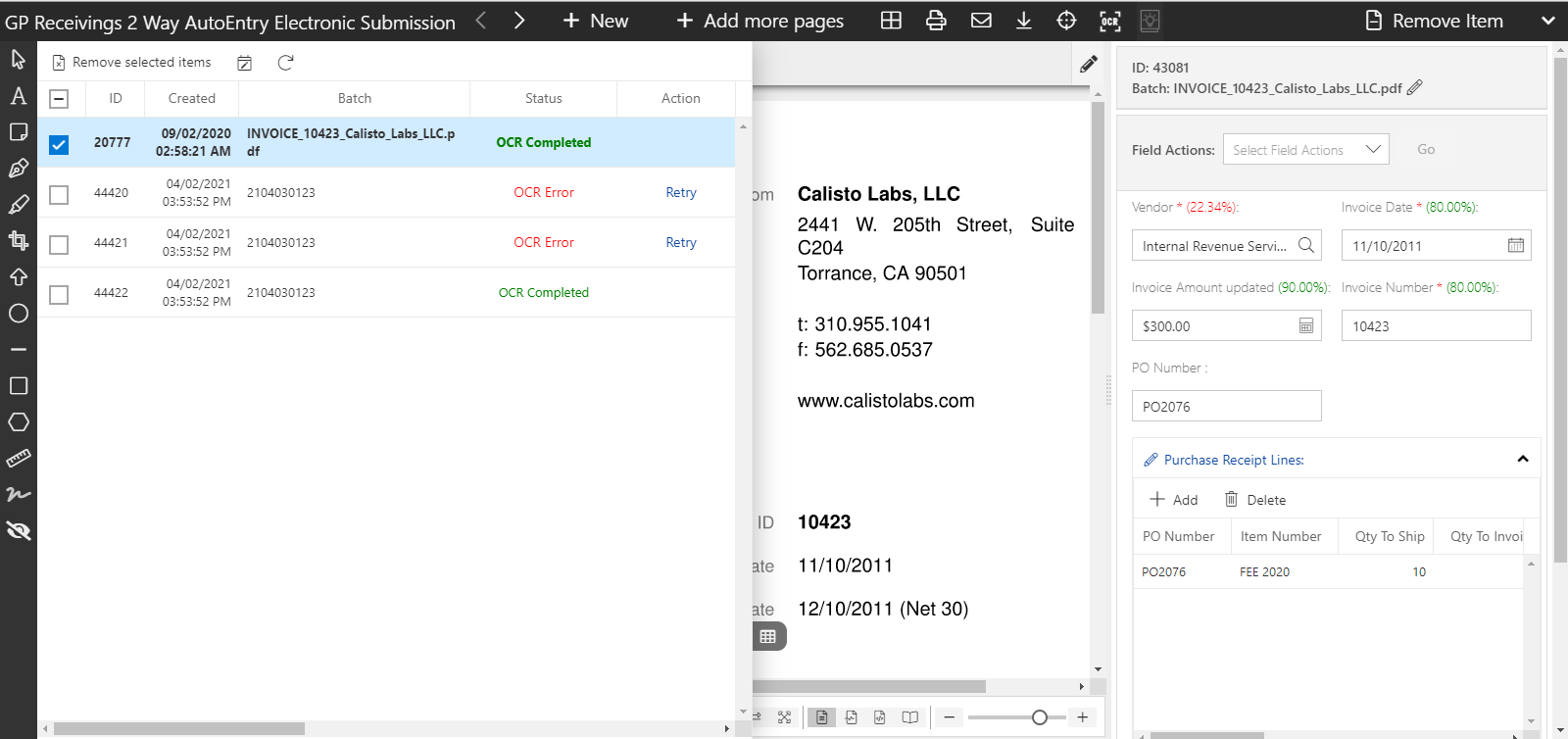

  • Once you are done validating the profile fields for the Workflow items that you wish to submit, navigate to Unsubmitted Item list where only current item is selected as shown in the below screen.

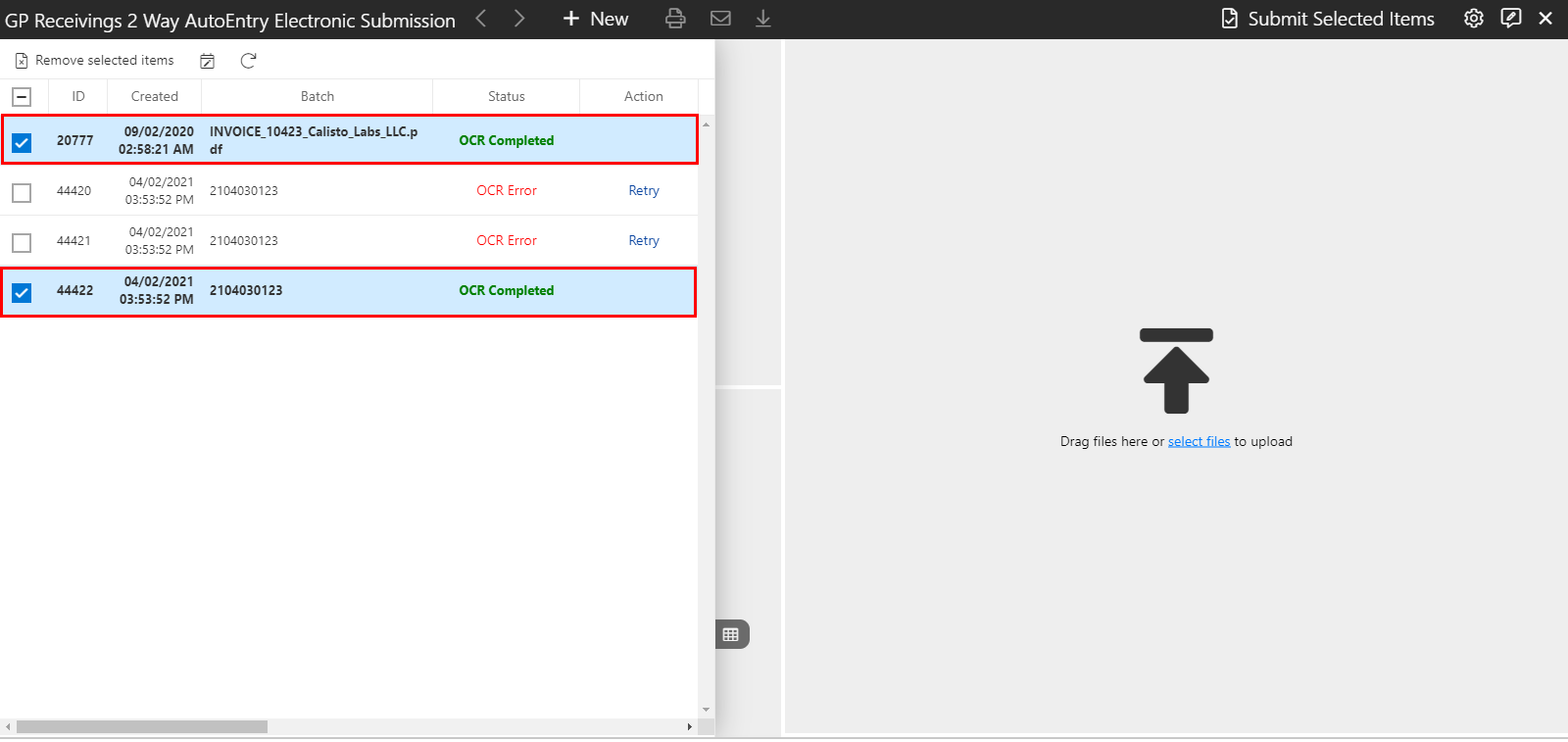

  • Select the multiple items from the unsubmitted item list that you wish to submit.

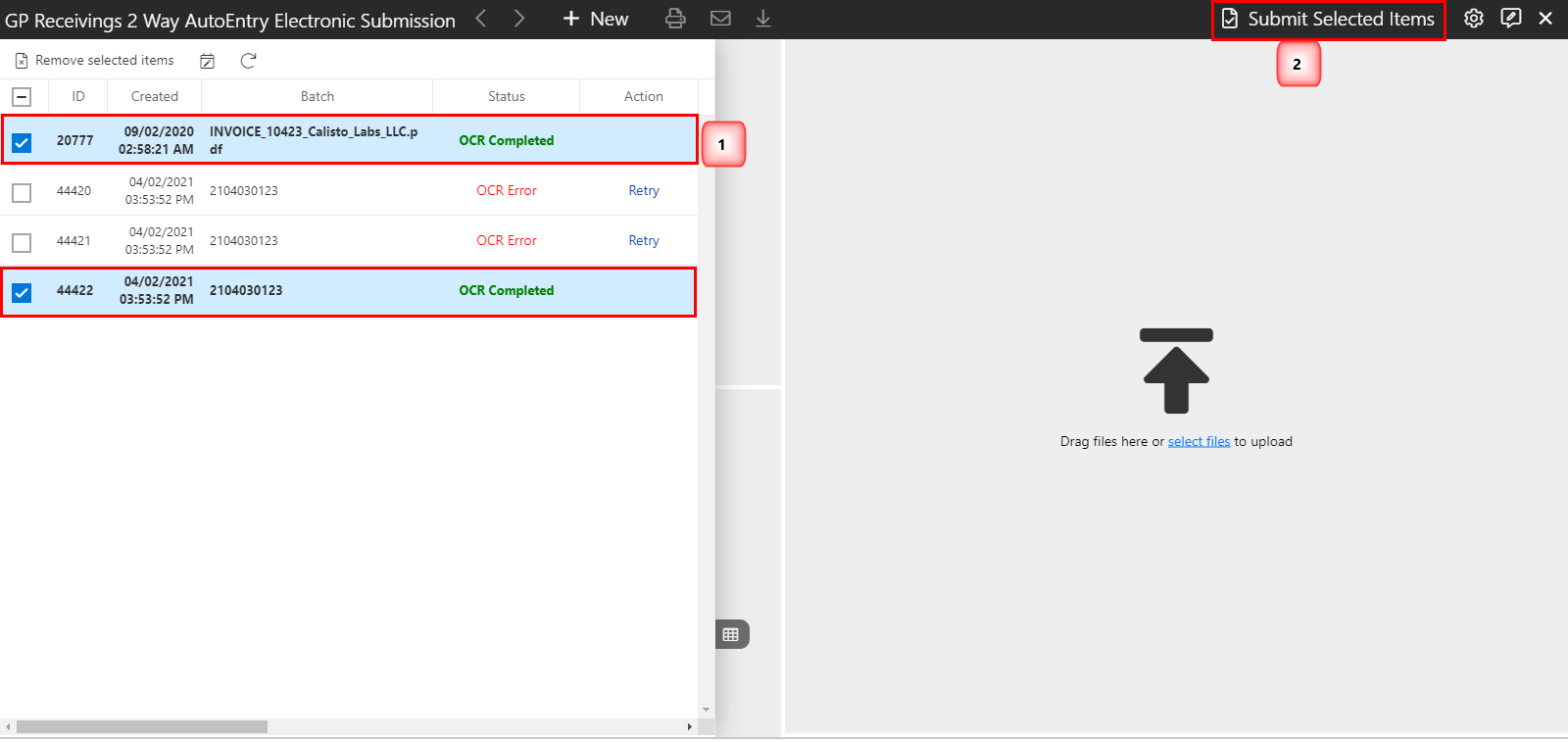

  • Now, click on the "Submit Selected Items" from the top level toolbar as shown in the below screen.





  • Now, you will see the following toast notification where it shows the number of items that were submitted successfully. Also, it shows the number of items that were not submitted along with the reason. As we can see, the required fields were incomplete for one item which led to its submission failure.





  • Thus, When you use the "Select Submitted items" for submitting multiple items, it displays the number of items that were submitted successfully and the number of items that failed to submit along with the reason for submission failure.
